Energy Specifications NG LP ULPG
Maximum BTUs/hrinfo 28,500 28,500
Turn Down BTU 15,500 15,500
Efficiency 60.02% 60.68%
EnerGuide Rating 55.59% 53.12%
Unit Dimensions IN
Width (front)
Height

Already know all about our options? Become creative:

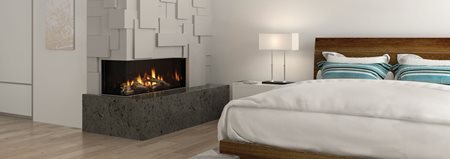

Customize your Chicago Corner 40LE Power Vent Gas Fireplace & find the perfect combination of accessories for your home

Firebed Options

Birch Log Set
Birch Log Set
Driftwood Log Set
Driftwood Log Set
Split Oak Log Set
Split Oak Log Set
Crystals - Black
Crystals - Black
Crystals - Starfire
Crystals - Starfire
Black Coal Crushed Glass
Black Coal Crushed Glass
Iceberg Crushed Glass
Iceberg Crushed Glass
Volcanic Stones - Tan
Volcanic Stones - Tan
Volcanic Stones - Gray
Volcanic Stones - Gray

Inner Panels

Enamel Black Reflective Panels
Enamel Black Reflective Panels

Framing Kits

Corner Framing Kit
Corner Framing Kit

Controls

Proflame 2 GTMF Remote Control (included)
Proflame 2 GTMF Remote Control (included)

Heat Output Options

Chase Vent Front - Black
Chase Vent Front - Black
Chase Vent Front - White
Chase Vent Front - White
Chase Vent Sides - Black
Chase Vent Sides - Black

Venting Caps

Flush Horizontal Power-Vent Termination Cap
Flush Horizontal Power-Vent Termination Cap

Specifications

The following specifications and literature apply to this product. You can also design your own fireplace with the Fireplace Design Center.

Energy Specifications NG LP
Maximum BTUs/hrinfo 28,500 28,500
Turn Down BTU 15,500 15,500
Efficiency 60.02% 60.68%
EnerGuide Rating 55.59% 53.12%
General Specifications
Product Size Medium
Room Size Medium
Vent Type Direct Vent
Vent Size (Air Intake) 6-5/8"
Vent Size (Exhaust) 4"
Width of Opening
Width (front)
Height
